PIONEERING PATENTED Wi-Fi BACKHAUL SOLUTIONS

90% reduction in LAN cabling needs

Edge & Cloud solutions enhanced by Enterprise Wireless Mesh

Edge & Cloud solutions enhanced by Enterprise Wireless Mesh

PicoCELA Backhaul Engine (PBE), our unique wireless multistage relay technology, makes it easy to realizes an enormous wireless LAN space.

PBE makes it possible to build a fast, smooth, stable and continuous wireless network by reducing the need for LAN cables. PBE offers peace of mind with management from anywhere via the cloud, including facilitating secure data communications and eliminating communication downtime.

With LAN cable wiring unnecessary, PBE makes it easy to set up a high-density arrangement of access points, while the large number of antennas helps realize the necessary quality of radio waves and high-speed communications. In addition, in the event of an antenna malfunction, PBE can establish an alternative routing with its self-healing function in a matter of seconds.

PicoCELA Backhaul Engine (PBE) promises to always provide stable communications amid a changing radio wave environment.

Installed & operational already at more than 1000 site inside Japan.

Current standard for construction sites all over Japan.

Features

Features
Features

Automatic Dynamic Tree

Automatic Dynamic Tree

The inter-Access points' (multi-hoping) throughput is secured to high levels while connecting them wirelessly.

Ordinary other solutions, when access points are connected wirelessly (multi-hoping), the drop in throughput outcome is significant, making it inevitable to connect each device with LAN cables. However, PicoCLEA technology embedded in its Access Points, make it possible to keep this drop very limited enabling the multi-hoping establishment. All this leads in the end to a wide cut in used LAN cables quantity.

This PBE (PicoCELA Backhaul Engine), as a unique technology owned and patented by PicoCELA Inc. makes it possible to secure a stable data transfer through multi-hoping while constantly performing automatic re-routing to ensure the optimum route.

LAN cables usage reduction up to 90%

Usage of PicoCELA solutions helps to reduce dependency on LAN cables up to 90% while establishing stable Wi-Fi networks.

LAN cables usage reduction up to 90%

Establishes stable Wi-Fi networks with wide coverage

Introducing PicoCELA solutions to your systems, ensures establishment and maintenance of wide range stable networks.

Establishes stable Wi-Fi networks with wide coverage

Secure the optimum conditions even with layout changes

Despite of layout modifications, PicoCELA solutions keeps the network at its best performance thanks to its automatic re-routing

Secure the optimum conditions even with layout changes

High-density arrangement

High-density arrangement of access points enables high radio wave quality and high-speed communication.

High-density arrangement

Self-healing function

In case of any network troubles, establishment of alternative routes within seconds thanks to the self-healing feature

Self-healing function

Enable network expansion with 0 downtime

LAN cable free network expansion, simply by adding new nodes

Enable network expansion with 0 downtime

Scalability

System capacity can be increased simply by adding more LAN cables according to the need

Scalability

Flexible adaptation to hybrid solutions

Hybrid solutions can be adopted in situations where parallel usage of LAN cables is needed.

Flexibility adaption to hybrid solutions

Edge computing platform

Applications installed at the AP, enables AI locally and taking advantage of edge computing solutions.

Edge computing platform

Tenjin underground mall

Tenjin underground mall

27units
85% LAN cable reduction
10 years operation
1.8M users access annually

Company: Fukuoka Underground Mall Development Co., Ltd.
Product used: PCWL-0400
Type of business: Commercial facility
Scale: 153 stores

Smart factory

Smart factory

Semiconductor plant
180,000 m2
Industrial IoT

70% LAN cable reduction
40 + units

Power plant

Power plant

Lower & faster installation costs

Site area: 30,000 m2
Deployed APs: 30 units
(indoor & outdoor)
Works duration: 2 weeks
(Compared to 6 weeks with ordinary solutions)
Cost: About 60.000$
(Compared to 200.000$ with ordinary solutions)

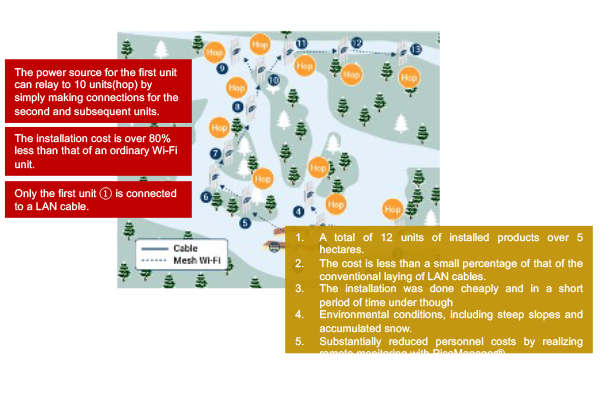

Ski resort

Ski resort

12 units covering a vast space equivalent to the size of 7 football pitches with just one single LAN cable.

Company: GALA Yuzawa Corporation
Product used: PCWL-0400
Type of business: Ski resort
Scale: 12 units covering five hectares
Outline: GALA Yuzawa ski resort needed a robust Wi-Fi network that could provide free public Wi-Fi for guests, act as an emergency communications infrastructure, and help improve safety. PicoCELA's products were used for this challenging installation environment, which needed to have as little cabling as possible.

Construction sites

Construction sites

11units

Video surveillance system in large solar power plant
670,000 m2
Power supply was secured with solar panel batteries

Wi-Fi environment is becoming an essential requirement at areas where LAN cabling is difficult to deploy for construction sites.

Wireless LAN coverage becomes easily possible thanks to PicoCELA Backhaul Engine (PBE)'s multi-hoping technology, even at outdoor areas.

PicoCELA's flagship outdoor model PCWL-0510 AP deliver at harsh environments, then the directional antenna helps to extend connection to further distances up to 1.5km.

Also it solves issues about staff safety and communication and control and monitoring for construction sites when combined with other platforms and applications.

All this together improves drastically measures for labor reduction and work's efficiency at these wide outdoor sites.

Retail stores

Retail stores

Mega retail chain with more than
100 stores in Japan & overseas has chosen PicoCELA in 2022 for all its stores Wi-Fi network deployment.

・Easy re-routing in accordance to store layout changes.

・Reliable network for POS system

・PicoManager® cloud management system enabling data collection for marketing purposes

Event venues

Event venues

Event venue
6 units
20,000m2
0.5 day for deployment,
1h for dismantling

Company: Snow Peak, Inc.
Product used: PCWL-0410/ Directional Antennas
Type of business: Event venue
Scale: Approx. 20,000 m2 campsite
Outline: Network for a general product exhibition at a campground adjacent to the company's headquarters

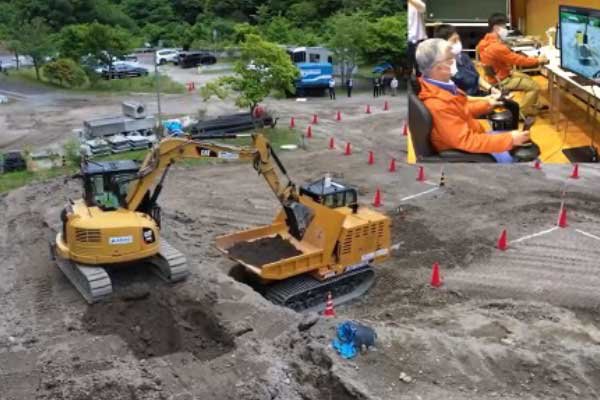

Rescue construction machinery remote operation

Dynamic wireless mesh for remoteControlled vehicular machines

PicoCELA solution was showcased in the e-Construction Machine Challenge
Where the operators controlled and managed the machinery 70 kilometers away thanks to the connectivity secured with ourTechnology.

Event venues
Event venues

Multi-offices company

Construction sites

The network coverage for all the 43 offices was installed in less than 9 working days

Cloud management of
43 offices

With more than 100 units

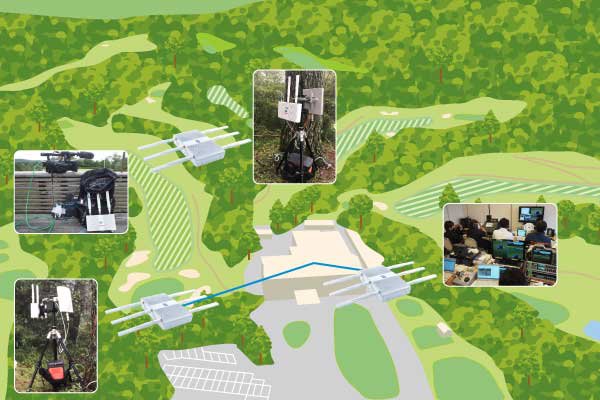

Live broadcasting for sports events

Live broadcasting for sports events
Company: GAORA Inc.
Product used: PCWL-0400
Type of business: Live Broadcasting

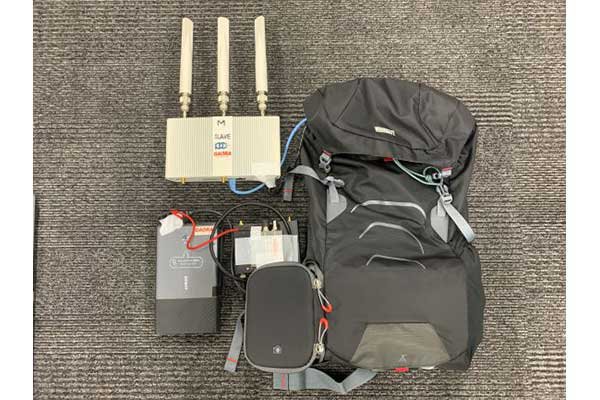

Outline: Live broadcast easily made with cameraman carrying the access point in his backpack while moving in the golf ground
